CS 50 PRECISIO 190mm Table Saw
The PRECISIO CS 50 EGB is the perfect solution for cross and rip cuts in applications involving interior fitting, furniture assembly and exhibition stand construction. It's lightweight and folding legs make it easy to transport and set up in seconds. It's 180 degrees swivelling mitre guide and huge 304 mm cutting path means the trimming saw is easily controlled via a multifunction handle and adjustable control elements. The moving splinterguard minimises splintering on both sides of the blade. Dust is efficiently removed when used with a Festool Dust Extractor, thanks to the integrated extraction port. It also comes with neat accessory storage and integrated transport rollers for greater mobility.

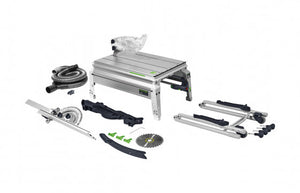

Scope of Delivery
- CS 50 EBG PRECISIO Trimming Saw
- Universal Saw Blade HW W32
- Mitre Guide
- Foldaway Legs
- 3 x Splinterguards
- Dust Extraction Hose Set with Y Piece
- Push Stick
- Accessories holder
- Support with transport roller
- Tool Manual
Applications
- Cross cuts up to 300 mm wide
- Cross cuts up to 200 mm wide at 45 degree angle
- Rip cuts up to a depth of 52 mm
- One site exhibition stand construction
- Interior fitting
- Furniture assembly
Technical Data
Product Name | CS 50 EBG PRECISIO 190mm Table Saw |
---|---|
Motor Type | Brushed |
Power Source | Corded |
Power Consumption | 1,200 W |
No Load Speed | 1,600 rpm - 4,200 rpm |
Power Lead Type | Fixed Lead |
Saw Blade Diameter | 190 mm |
Cutting Height 45° | 0° - 37° |
Cutting Height 90° | 0° - 52° |
Inclination Angle | 0 (-2)° - 45 (+47) |
Cutting Path | 304 mm |
Table Dimensions | 585 mm x 400 mm |
Table Height - Legs Folded Away | 316 mm |
Table Height - Legs Unfolded | 900 mm |
Dust Extraction Connection Diameter | 27 mm / 36 mm |
Tool Weight | 21.9 kg |
