TDC 18V Cordless 4 Speed Drill Basic in Systainer

Festool

  • $575.00
  • SKU: 575601


Features

Powerful. Versatile. With four gears for every application and the best switching concept you have ever operated. Whether you are working on wood or metal, the TDC QUADRIVE is extremely durable and thanks to its brushless EC-TEC motor, has extreme resilience and endurance. Up to 75Nm of power drives screws and drills large diameters easily, while electronic kickback stop minimises wrist injury if the tool suddenly jams.

The large number of attachments, combined with perfectly matched accessories, make the QUADRIVE an unrivalled drill for a wide range of possible uses.

Main applications

  • Production of wooden substructures, frame structures
  • Installation of doors and windows
  • Drilling and screwdriving in wood, metal and plastic
  • Drive screws into wood up to 10x300 mm
  • Drilling in wood up to 70 mm with Forstner drill bits
Greater safety when working

The electronic kickback stop prevents your wrist from twisting dangerously if the drill suddenly becomes caught or jammed, therefore ensuring improved safety when working.

The QUADRIVE – four gears, with the right one for every application

1st gear: Demanding tightening of screws up to 10 mm. 2nd gear: Quick screwdriving up to 8 x 300 mm in size. 3rd gear: Powerful drilling with auger bits of up to 20 mm. 4th gear: Quick drilling with medium and small drill bits up to 35 mm, for example Forstner drill bits.

Optimised gear switching

Fast, safe, direct! Switching in any direction – from any gear straight to any other, without intermediate stages. Fixed stops ensure clear engaging. Fast downshifting possible as required.

Increased power in 2nd gear

40% more torque compared to the previous model for full traction with 8 mm screws.

QUADRIVE: Unique system width and perfect system compatibility

Thanks to the smart FastFix interface, you can use all of the 18 V attachments from the Festool range and therefore benefit from the system advantages. No other drill has such varied possible uses!

CENTROTEC tool chuck – for even more speed at construction sites

For instantly changing between drilling, countersinking and screwdriving: The CENTROTEC tool chuck, which has proven itself since 2001, is a chuck and bit holder in one. Even though it is half the size and weighs 80% less than a standard chuck: A real Festool invention with the usual Festool quality.

Latest generation of brushless EC-TEC motors

The brushless EC-TEC motor is wear-free and converts the energy from the battery into optimum power with virtually no losses. The electronic motor management also guarantees maximum service life: Microprocessors monitor and control the temperature, voltage and current consumption of the motor, electronics and battery. The latest generation of EC-TEC motors provides more torque and speed under load.

Practical attachments with quick angle adjustment

Very quick angle adjustment simply by rotating the green ring. The attachment no longer needs to be released from the machine. Even the eccentric adapter for screwdriving close to edges is equipped with quick angle adjustment.

Convenient for day-to-day use

Optimised torque adjustment to prevent accidental adjustment. A robust belt clip that can be attached on both sides and a bit holder for secure and magnetic bit storage at the side of the drill.

Perfect ergonomics – both compact and powerful

Thanks to its smaller circumference, the optimised handle ensures improved ergonomics and easier handling.

Tech Specs
Tool Weight (kg) 2.0 kg (with battery)
Drilling Diameter Steel (mm) 13 mm
No Load Speed 1st Gear (rpm) 0 - 500 min?¹
No Load Speed 2nd Gear (rpm) 0 - 800 min?¹
Drilling Diameter Wood (mm) 70 mm
Battery Voltage (V) 18 V
Battery Capacity (Ah) 5.2 Ah
Power Source Cordless
Motor Type Brushless
Battery Type Lithium Ion
Gears 4
Torque Adjustment 1st Gear (Nm) 2 - 20 Nm
Torque Adjustment 2nd Gear (Nm) 2 - 20 Nm
Maximum Torque Wood (Nm) 50 Nm
Maximum Torque Steel (Nm) 75 Nm
Chuck Range (mm) 1.5 - 13 mm
No Load Speed 4th Gear (rpm) 0 - 3600 min?¹
No Load Speed 3rd Gear (rpm) 0 - 2350 min?¹
Chuck Type FastFix

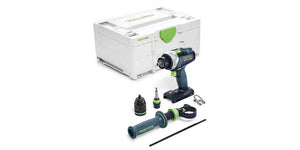

Includes
TDC 18V Cordless 4 Speed Drill
Soft Grip Handle
CENTROTEC BH 60 CE Magneic bit holder
CENTROTEC Tool Chuck
FastFix Keyless Chuck KC 13-1/2-MMFP
Belt Clip
PZ 2 Bit
Battery not included
Charger not included
Systainer³ SYS 2 M 187
Tool Manual
