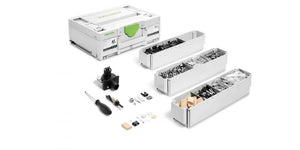

Connector Assortment Systainer for DF 500

The perfect joint. Now even more versatile. The new basic structure connectors and furniture connectors for the DOMINO DF 500 joining machine.

The new DOMINO basic structure connectors and furniture connectors enable stable yet flexible furniture designs that can be separated again. Because of their great versatility, they provide for a very large range of applications – from corner panel joints to centre panel joints to joints between a series of holes. For unique flexibility, speed and efficiency.

• The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
• The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
• The flush-screwed fixture elements protect each furniture component from being scratched
• Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
• The new detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm

Includes
DOMINO/DOMINO KV D8 basic structure connector
DOMINO/LR32 KV-LR32 D8 basic structure connector
DOMINO/DOMINO MSV D8 centre panel connector
DOMINO/LR32 MSV-LR32 D8 centre panel connector
50 light brown cover caps, KV-AK D15 brn
50 silver cover caps, KV-AK D15 slr
50 white cover caps, KV-AK D15 wht
50 grey cover caps, KV-AK D15 gr
DOMINO D 8 x 36 mm
BS-KV D15 drill template
KVB-HW D15 CE hinge location cutter
Screwdriver
Systainer SYS3 M 137
