Groove Cutter Attachment for HK85 Saw in Systainer
Features
Flexible use of the HK 85 Circular Saw as a groove cutter by easily installing the groove unit. High surface quality and fast work progress through reversible carbide cutting blades and pre cutting blades. Intermediate rings to set the desired groove widths. For cutting crosswise and lengthwise grooves with an adjustable cutting depth 0 mm - 35 mm and cutting width 16 mm - 25 mm.
Tech Specs
Cutting Width (mm) 16 mm - 25 mm
Cutting Depth (mm) 0 mm - 35 mm
Dust Extraction Connection Diameter (mm) 36 mm
Weight (kg) 0.9 kg
Blade Dimensions L x W x H (mm) 14 mm x 14 mm x 2 mm
Groover Diameter (mm) 130 mm
Groover Dimensions (mm) 16 mm - 25 mm

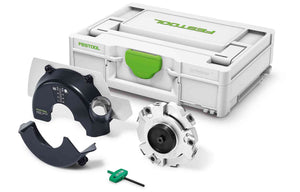

Includes
Adjustable Groove Cutter 130 x 16-25 mm
Reversible Blades HW-WP 14 mm x 14 mm x 2 mm
Guard (fixed)
Guard (movable)
Clamping flange
Counter flange
Spacer
Systainer³ SYS 3 M 137
Adjustable Groove Cutter 130 x 16-25 mm
Reversible Blades HW-WP 14 mm x 14 mm x 2 mm
Guard (fixed)
Guard (movable)
Clamping flange
Counter flange
Spacer
Systainer³ SYS 3 M 137
